Sinotruk howo FRONT AXLE

Time：2022-05-18 00:00:00 Hits：846

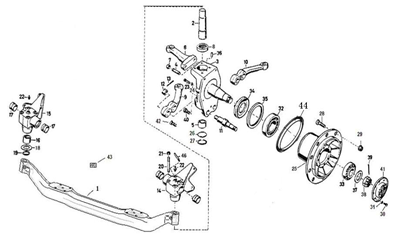

FRONT AXLE（7T、9T）

sinotruk howo front axle.png


POS

Number of part

Quantity

Standard Specification

Designation

1

AZ9719410083

1


Front axle

1

AZ9125411154

1


Front axle

1

AZ9925410121

1


Front axle

1

AZ9719410093

1


Front axle

2

WG880 410031

2


Knuckle pin

3

AZ9112410055

1


Left knuckle

3

AZ9112410056

1


Right knuckle

4

WG880 410060

2


Stud

5

WG9100410129

2


Bushing

6

AZ9719410005

1


Steering knuckle Arm

7

190003888626

2


Nut fastener

8

WG9700410049

2


Bearing

9

AZ9719410041

1


Tie Rod Arm (left)

10

AZ9719410040

1


Tie Rod Arm(right)

11

WG880 410038

4


Brake shoe pin

12

190003872377

4


Castle Nut

13

Q5005050

4


Cotter pin

14

AZ9100410033

1


Bracket (left)

15

AZ9100410037

1


Bracket (right)

16

WG9100410035

2


Bushing

17

WG9100340017

4


Complex bushing

18

WG880 410094

nB

S=2.2mm

Shim

18

1880 410095

nB

S=2.3mm

Shim

18

1880 410096

nB

S=2.4mm

Shim

18

WG880 410097

nB

S=2.5mm

Shim

18

1880 410104

nB

S=2.0mm

Shim

18

1880 410105

nB

S=2.1mm

Shim

18

1880 410106

nB

S=2.6mm

Shim

18

1880 410107

nB

S=2.7mm

Shim

18

1880 410108

nB

S=2.8mm

Shim

19

WG880410052

2


"O"  ring

20

WG880 410075

8


Stud

21

190003888458

8


Nut

22

AZ9003963004

2


Grease fitting

23

WG880 410059

2


Adjusting bolt

24

Q351B14T15

2


Nut

25

WG9112410009

2


Front hub

26

WG880 410100

2


Cap

27

Q43056

2


Spacers

28

WG9100410104

20


Wheel bolt

29

WG9003884160

20


Nut

30

Q150B0816

16


Cap screw

31

Q40308

16


Spring shim

32

190003326543

2

32314 GB/T297-94

Bearing

33

190003326531

2

32310 GB/T297-94

Bearing

34

WG99000410114

2


Spacers

35

WG9003074387

2


Seal

36

Q5211016

2


Pin

37

WG9100410062

2


Washer

38

AZ9100411140

2


Knuckle lock nut

39

Q5006370

2


Cotter pin

40

Q151C1220

4


Cap screw

41

WG9100410043

2


Cap

42

WG9100410060

2


Egis Cover

43

WG2297Y4835

1


Plaque

44

WG9112410019

2


Annulus ring
